Helvex Store Fixtures

Display walls, islands, gondolas and faucet counters for Helvex sales spaces, developed by our product engineering team.

Request a quote See the fixtures

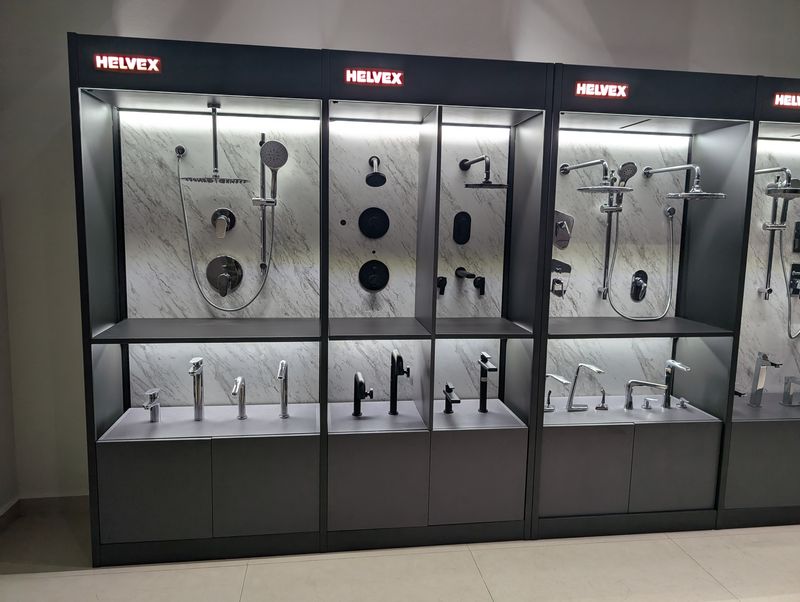

Row of Helvex wall modules displaying showers and faucets

The project

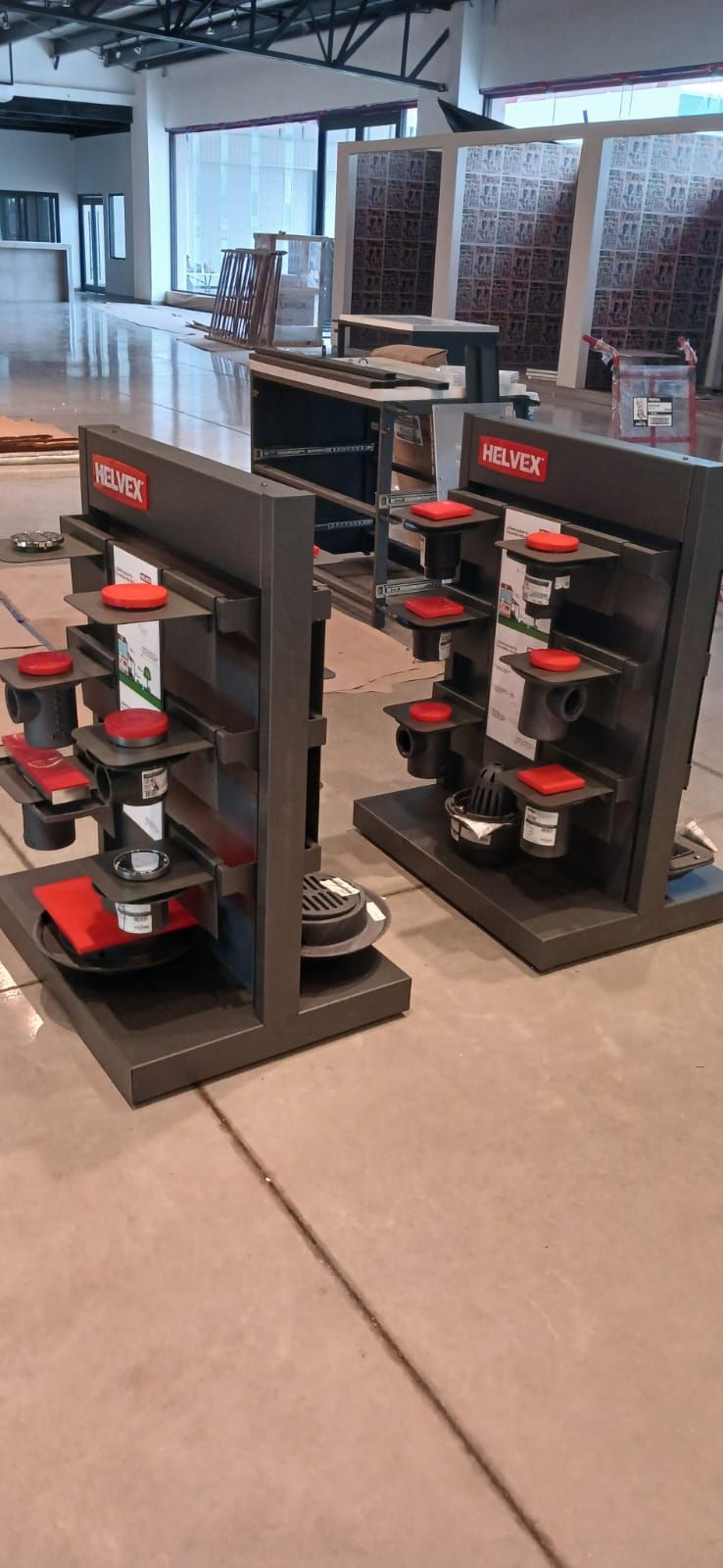

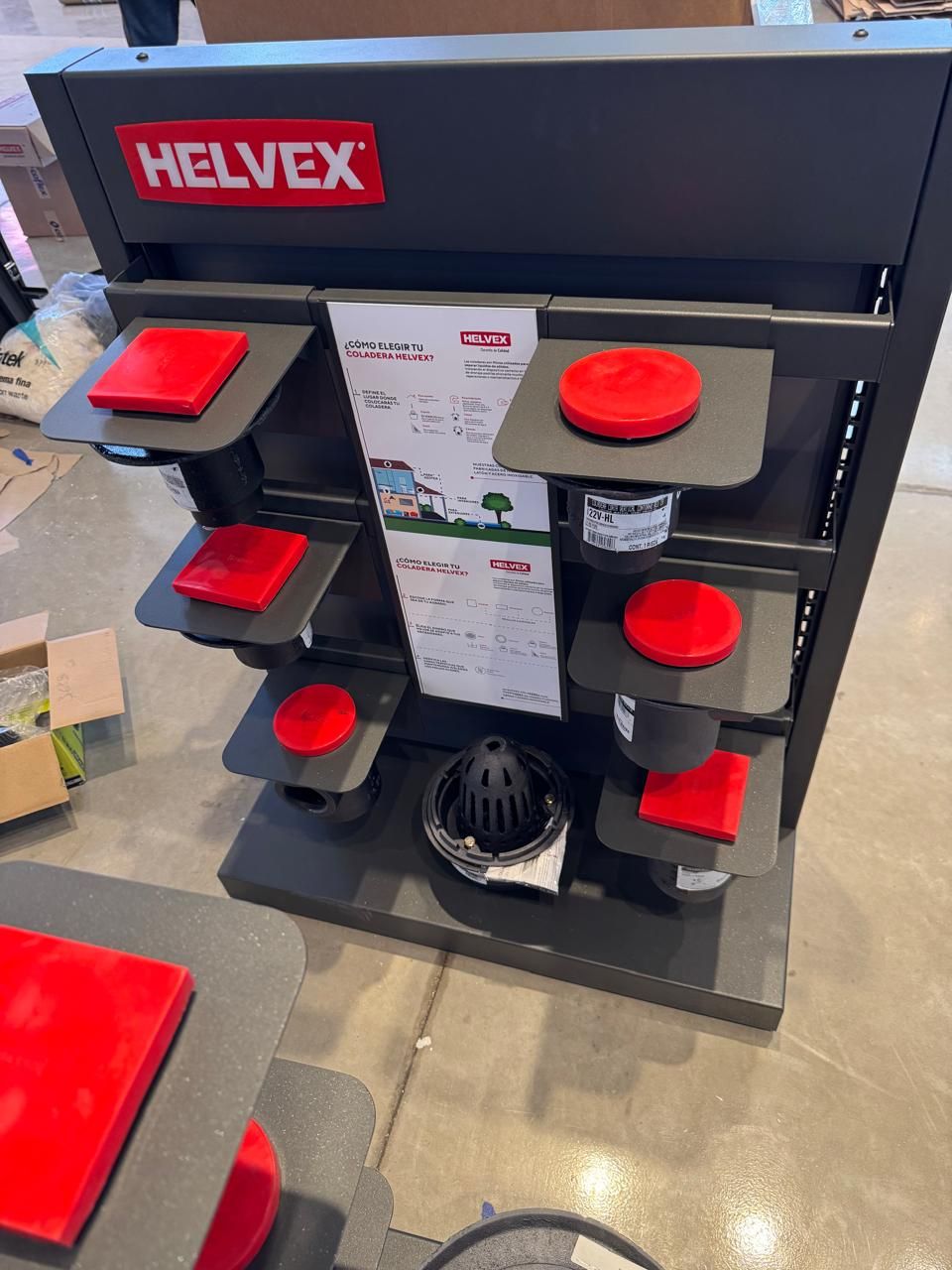

For Helvex we developed a display fixture program for faucets and bathroom products: wall modules for showers and faucets, modules for toilets and washbasins, islands, center gondolas, kitchen faucet counters and floor drain displays.

Every piece starts from a Tecnometal engineering drawing, so modules can be repeated and combined into complete walls to suit each store.

Client: Helvex
Sector: Retail · faucets and bath
Scope: Display fixtures
Pieces in catalog: 8

In store

Photos of the fixtures installed on the sales floor.

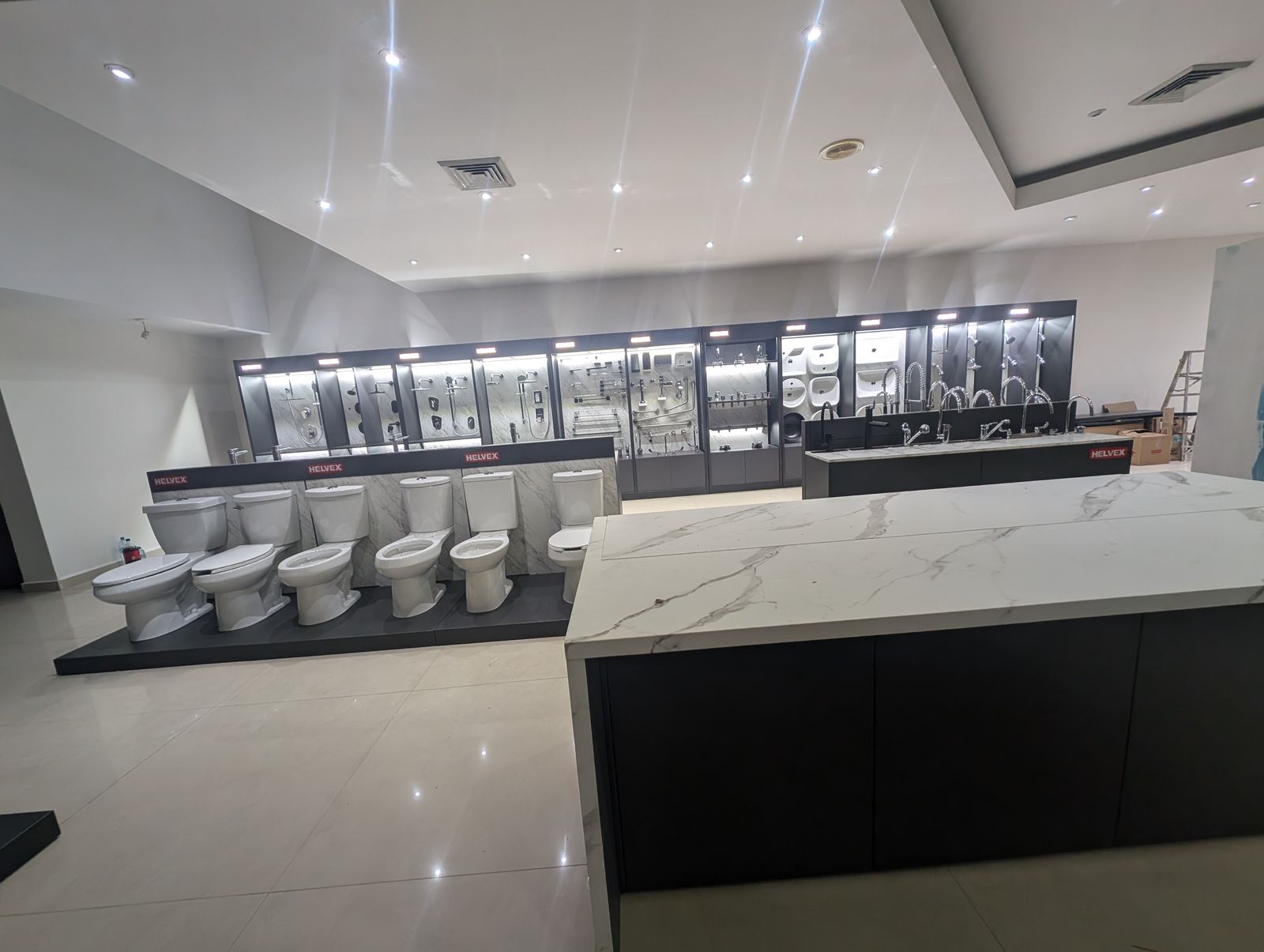

Showroom floor overview: faucet island, toilet platform and product walls

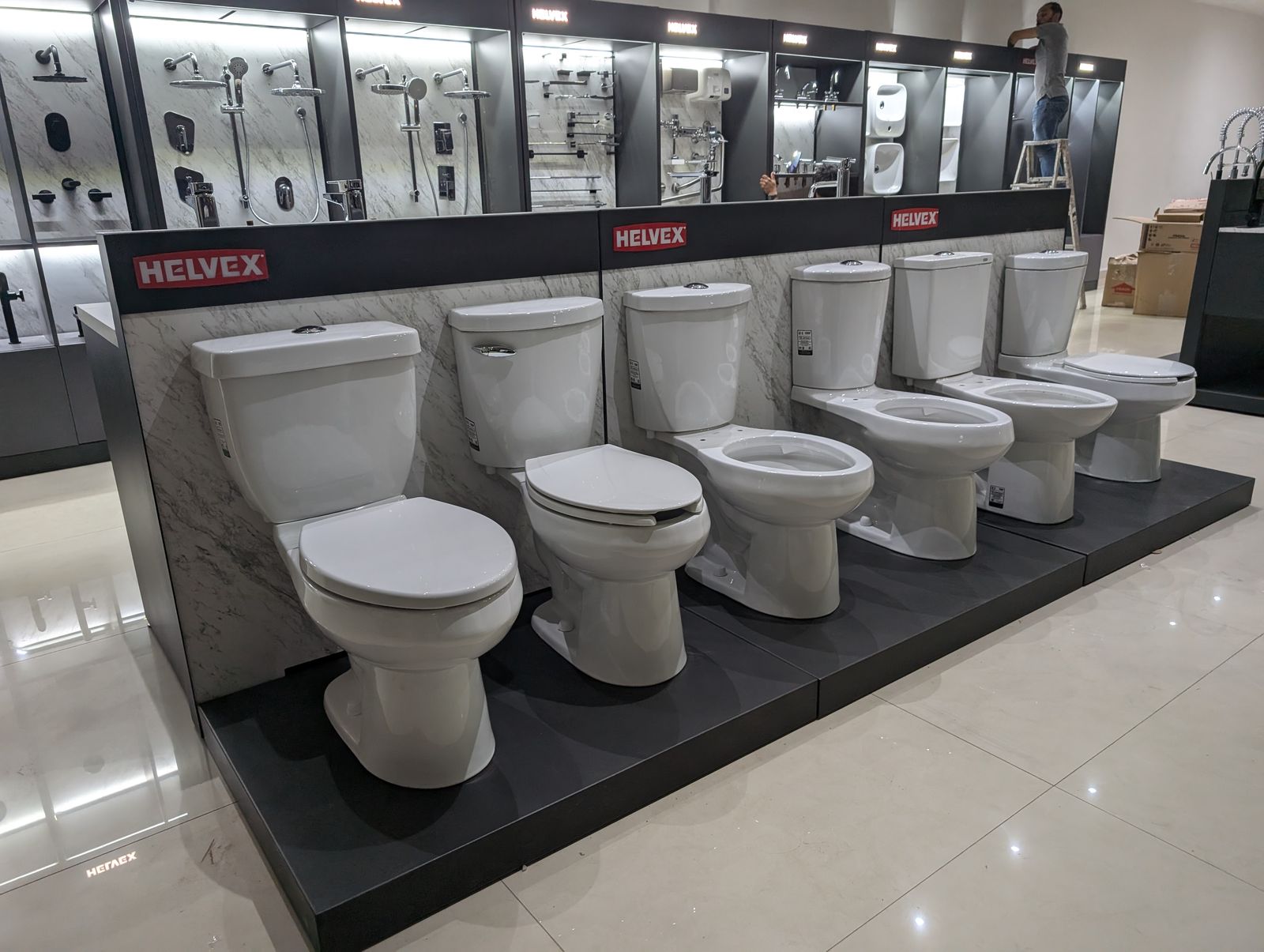

Toilet display platform with branded header

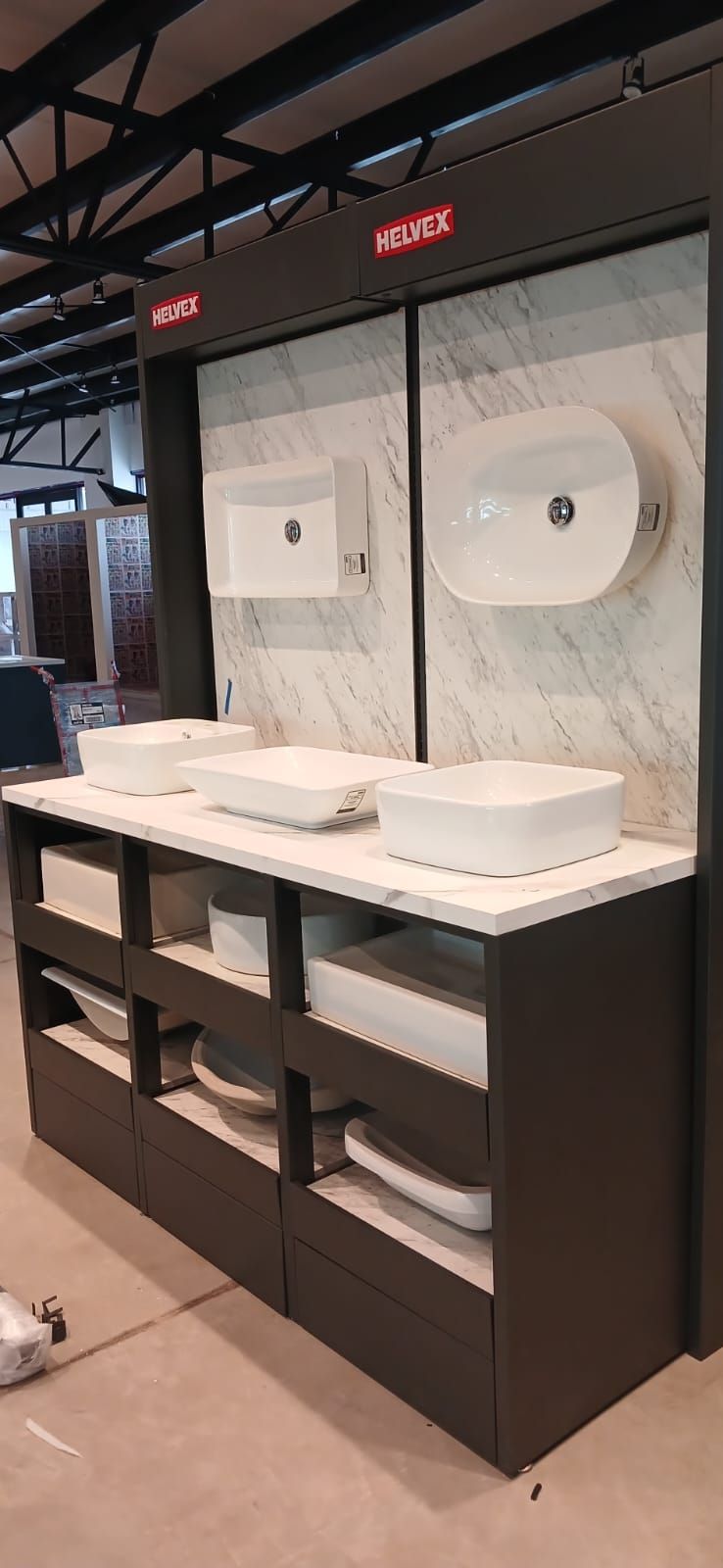

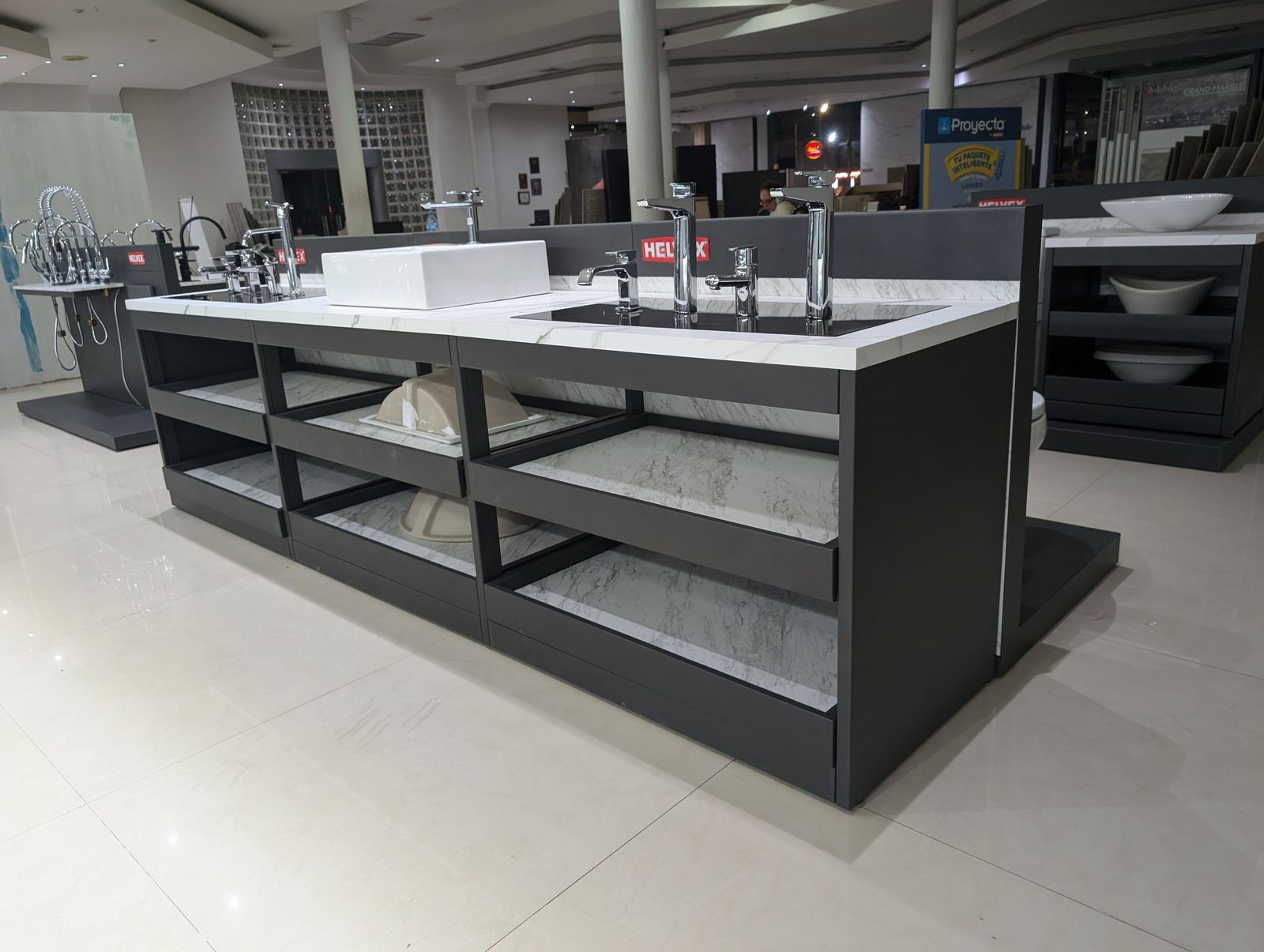

Island displaying washbasins and faucets

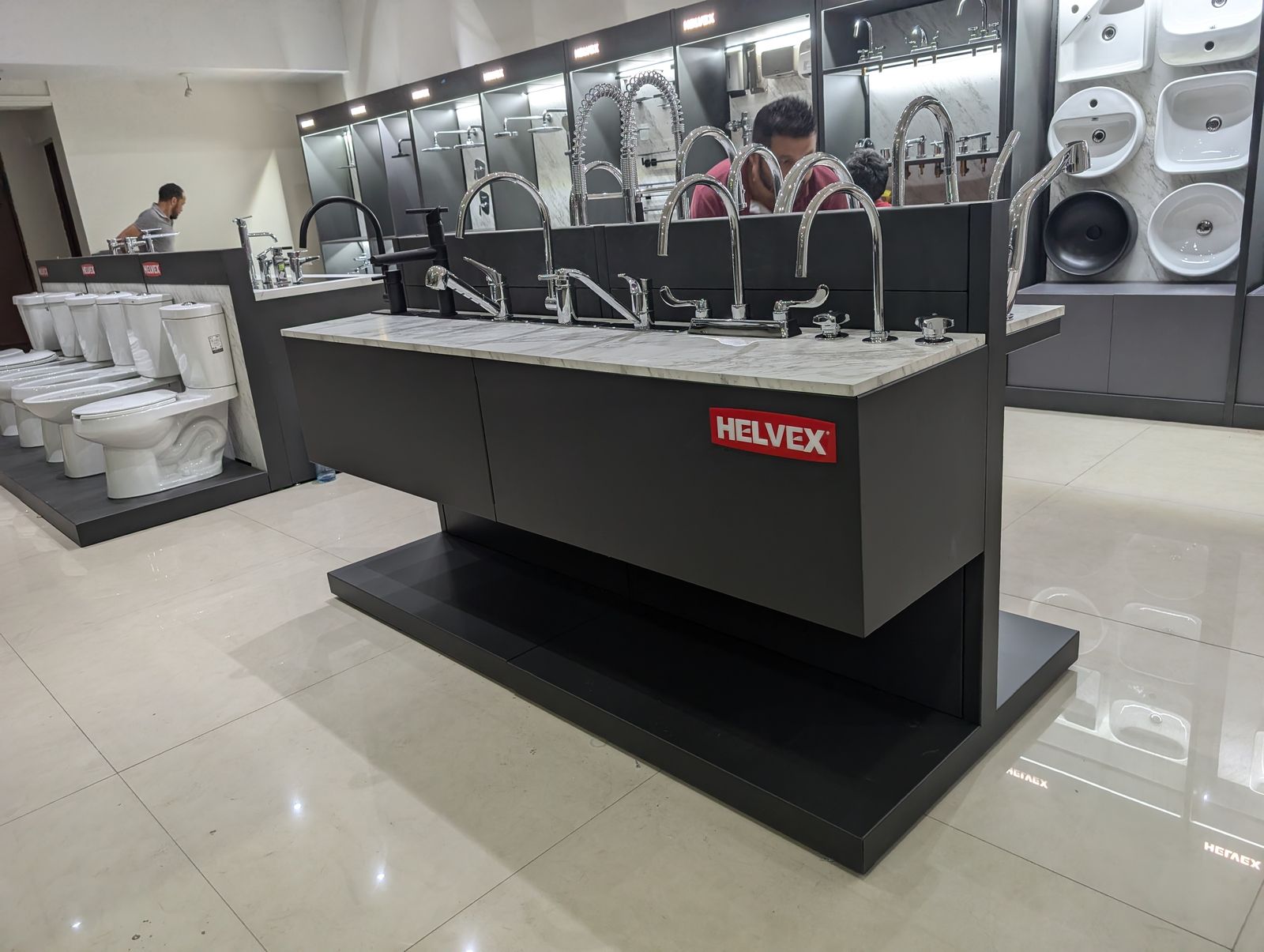

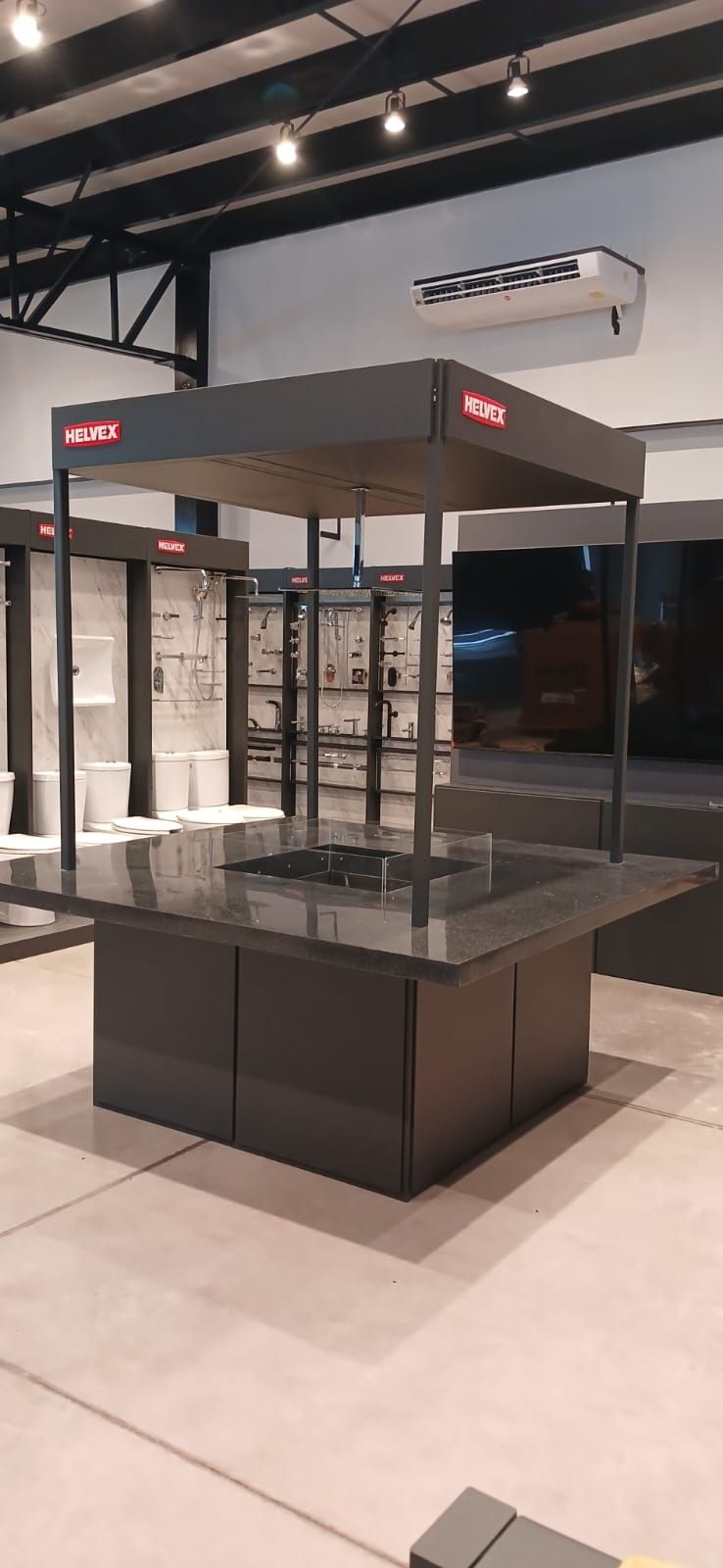

Faucet display island with branded header

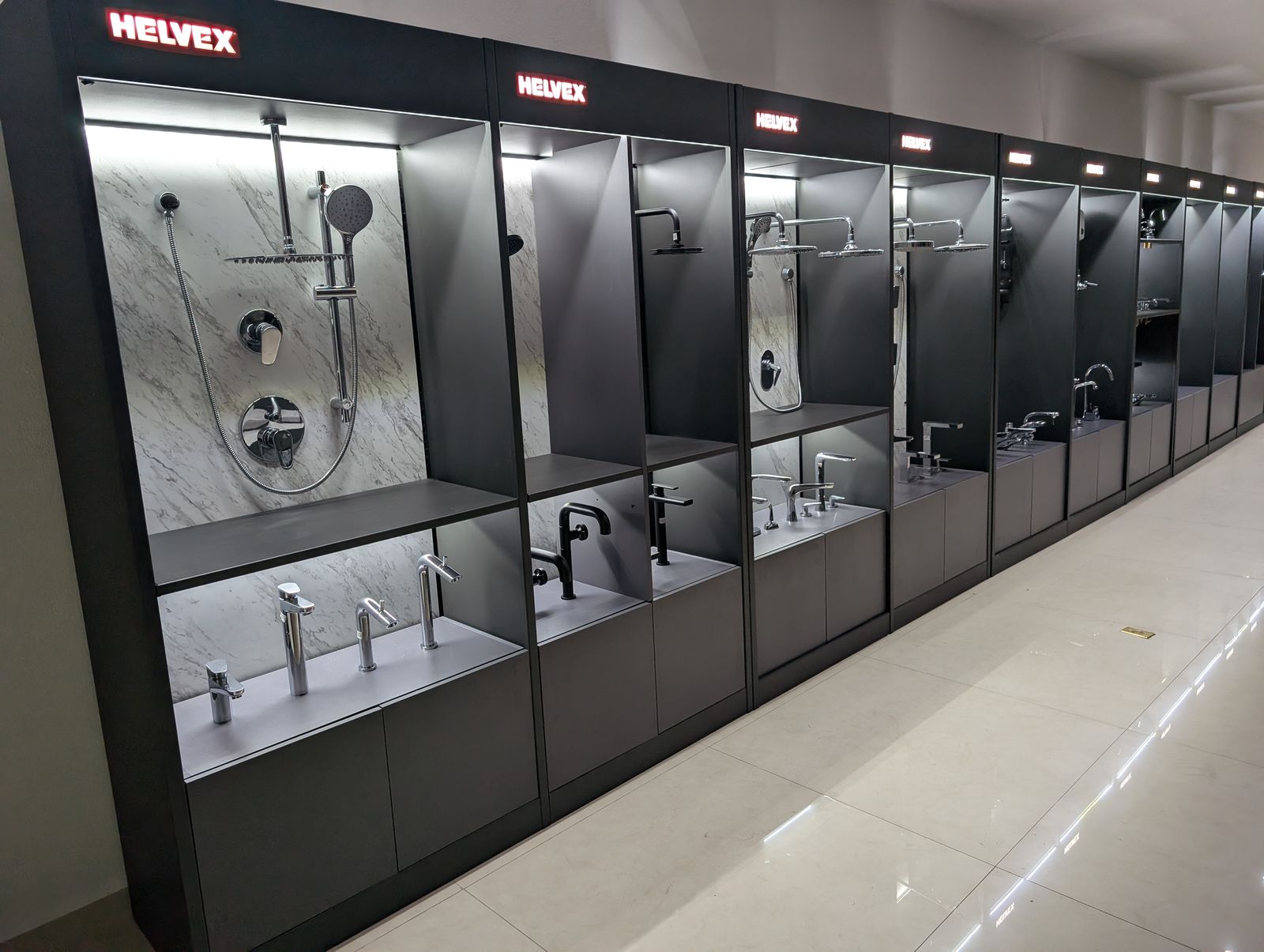

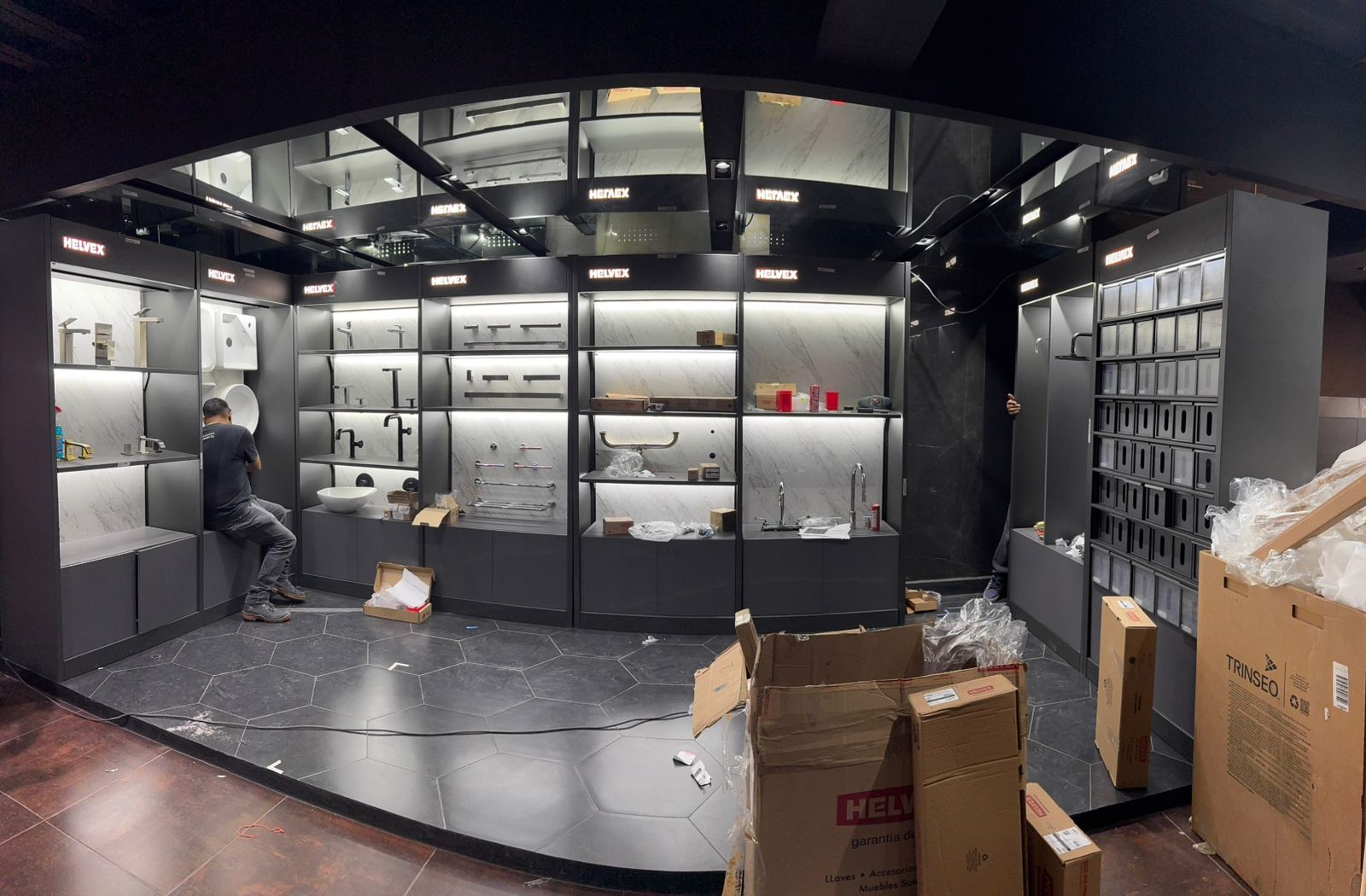

Row of wall modules for showers and faucets

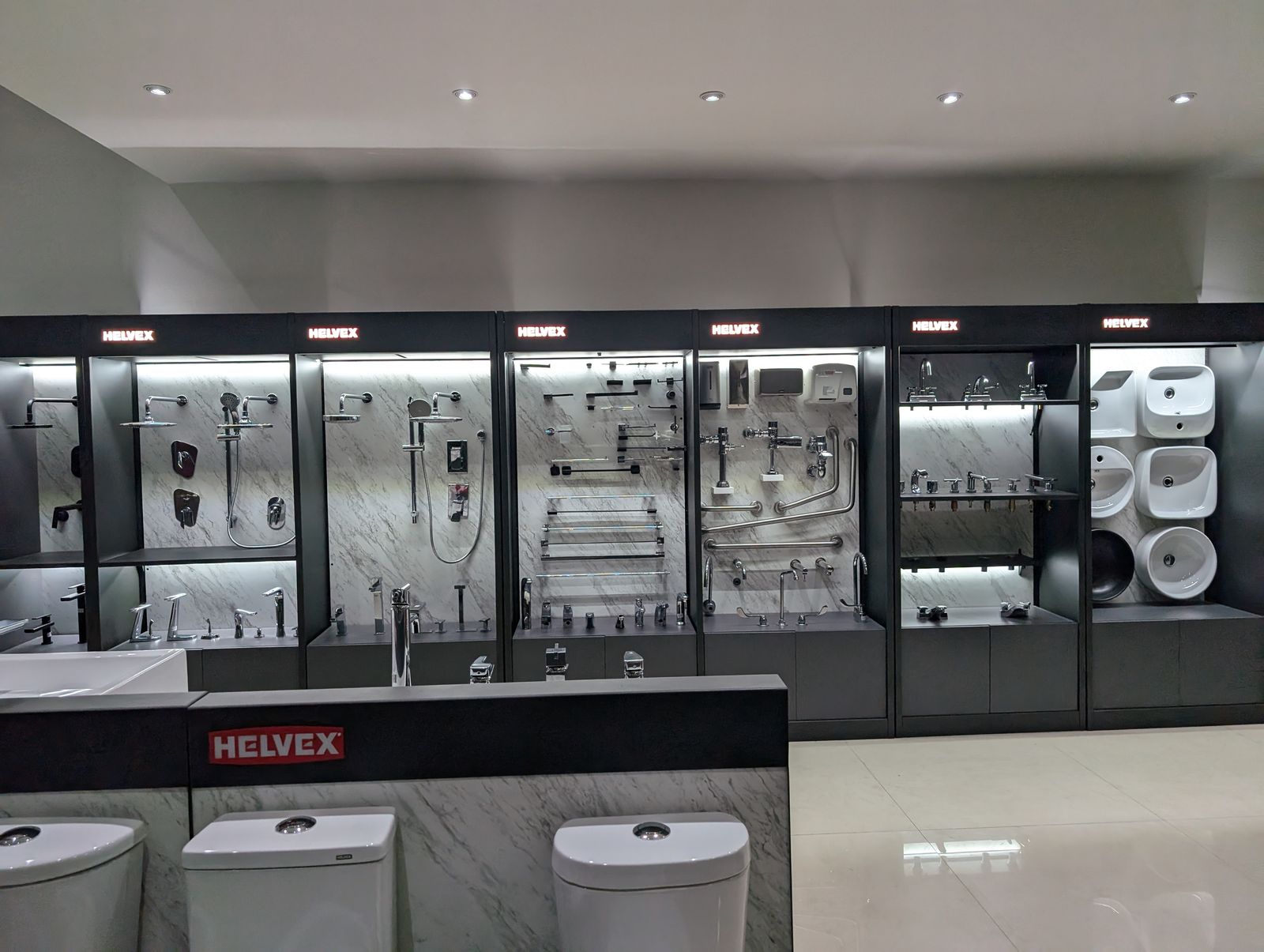

Wall modules displaying toilets and washbasins

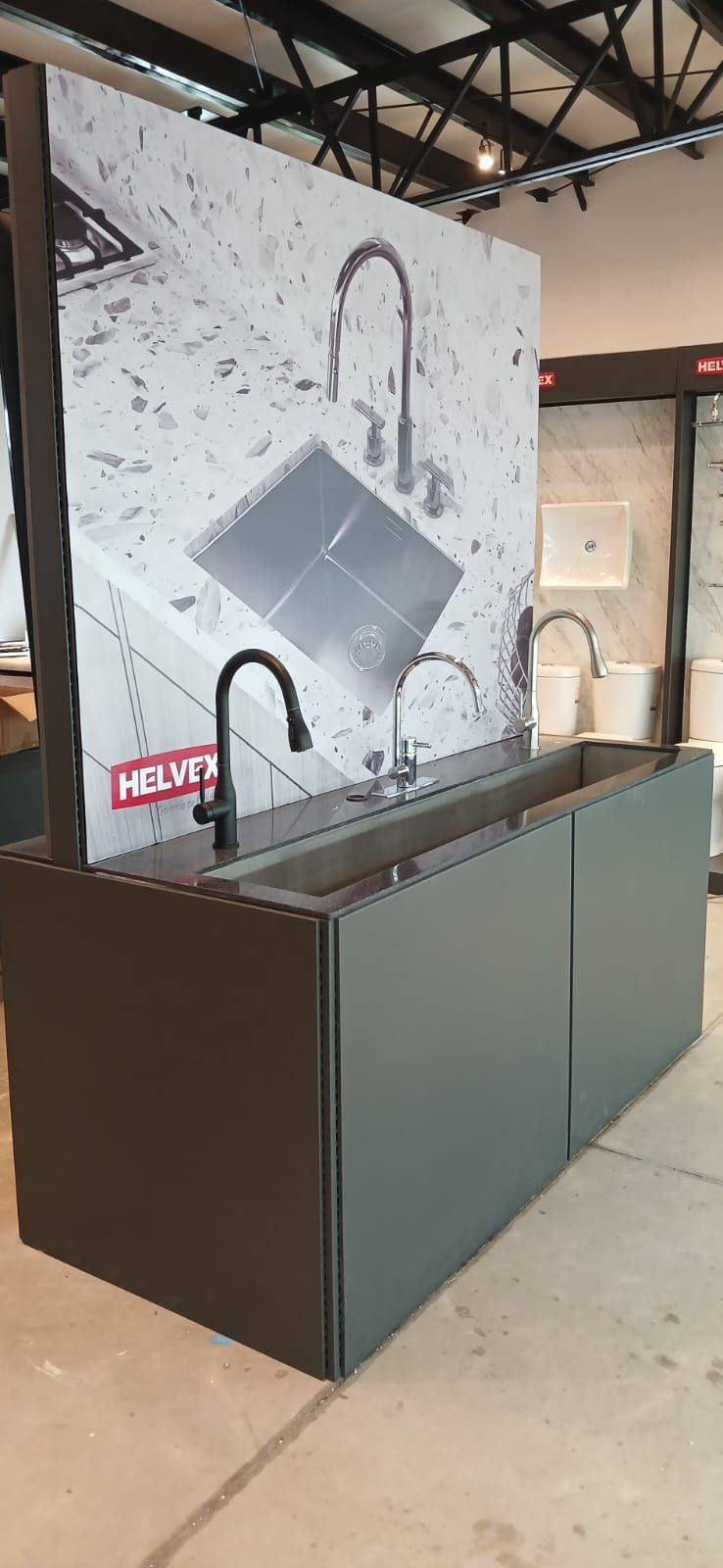

Display counter for kitchen sinks and faucets

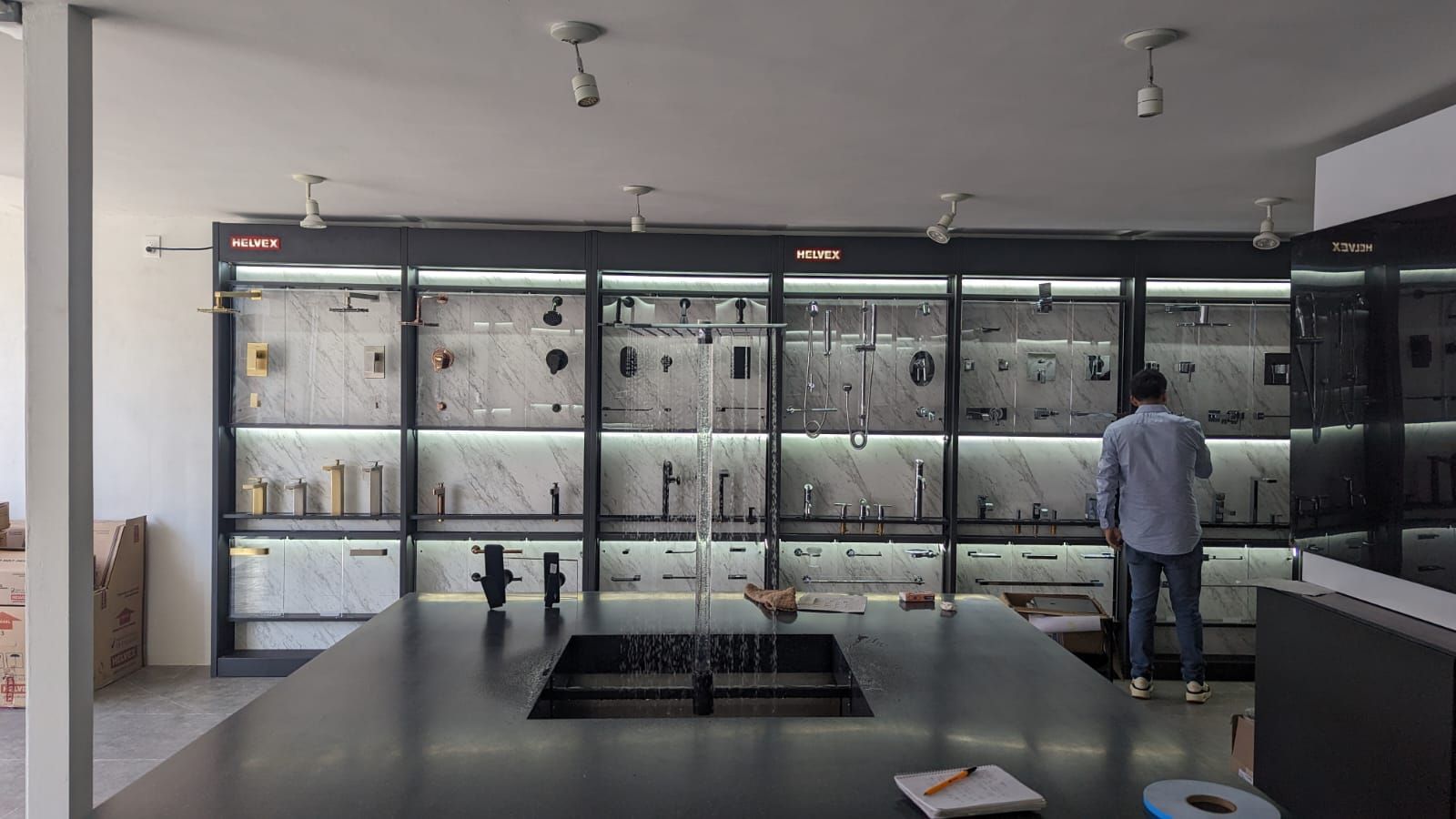

Full display wall with kitchen counter in front

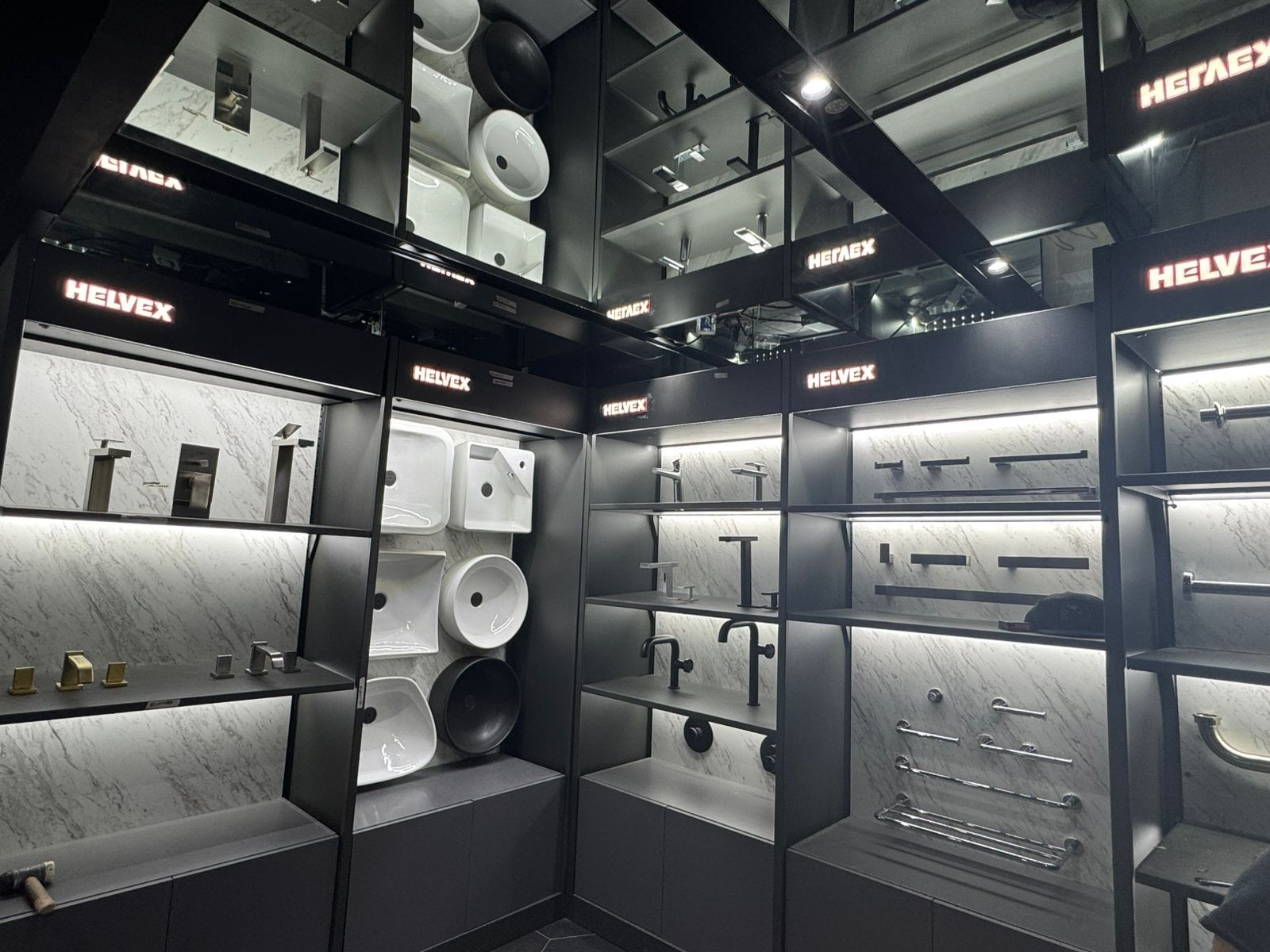

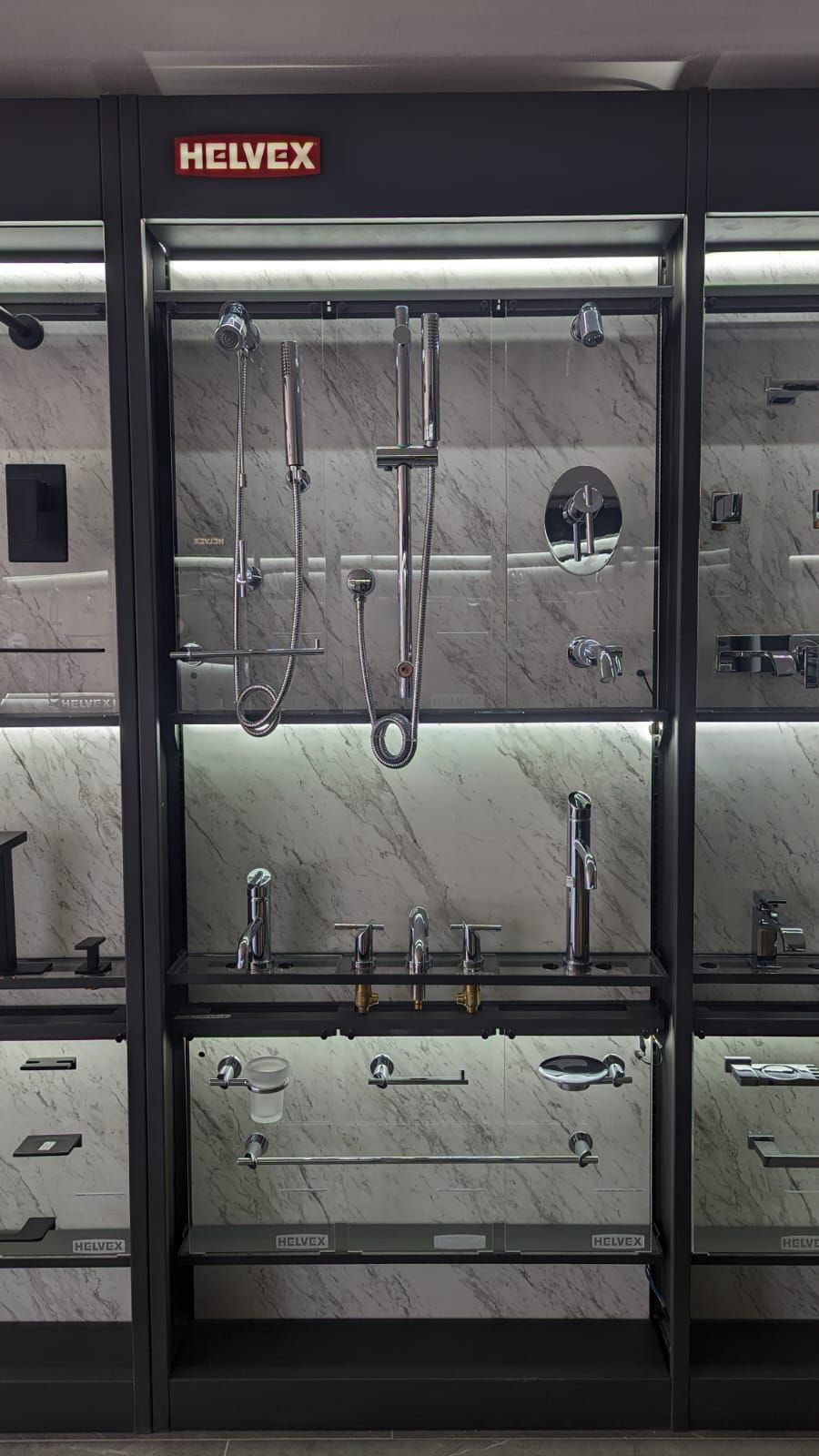

Wall module detail with faucets and bath accessories

The fixtures

Isometric views from the engineering drawings of the program’s main pieces.

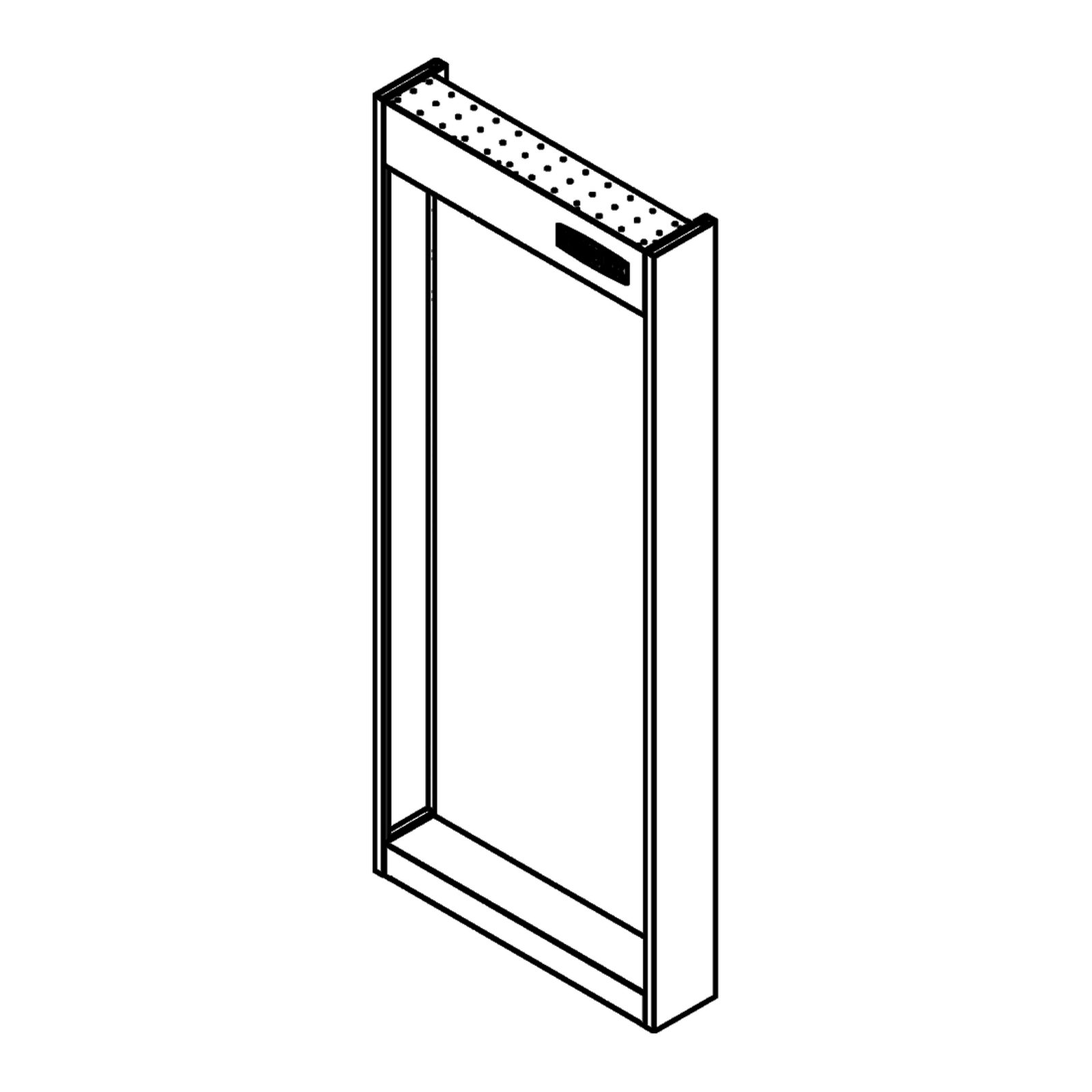

Single wall module

Framed wall module with a branded top header; the building block of the faucet display walls.

Width: 1000 mm
Height: 2400 mm

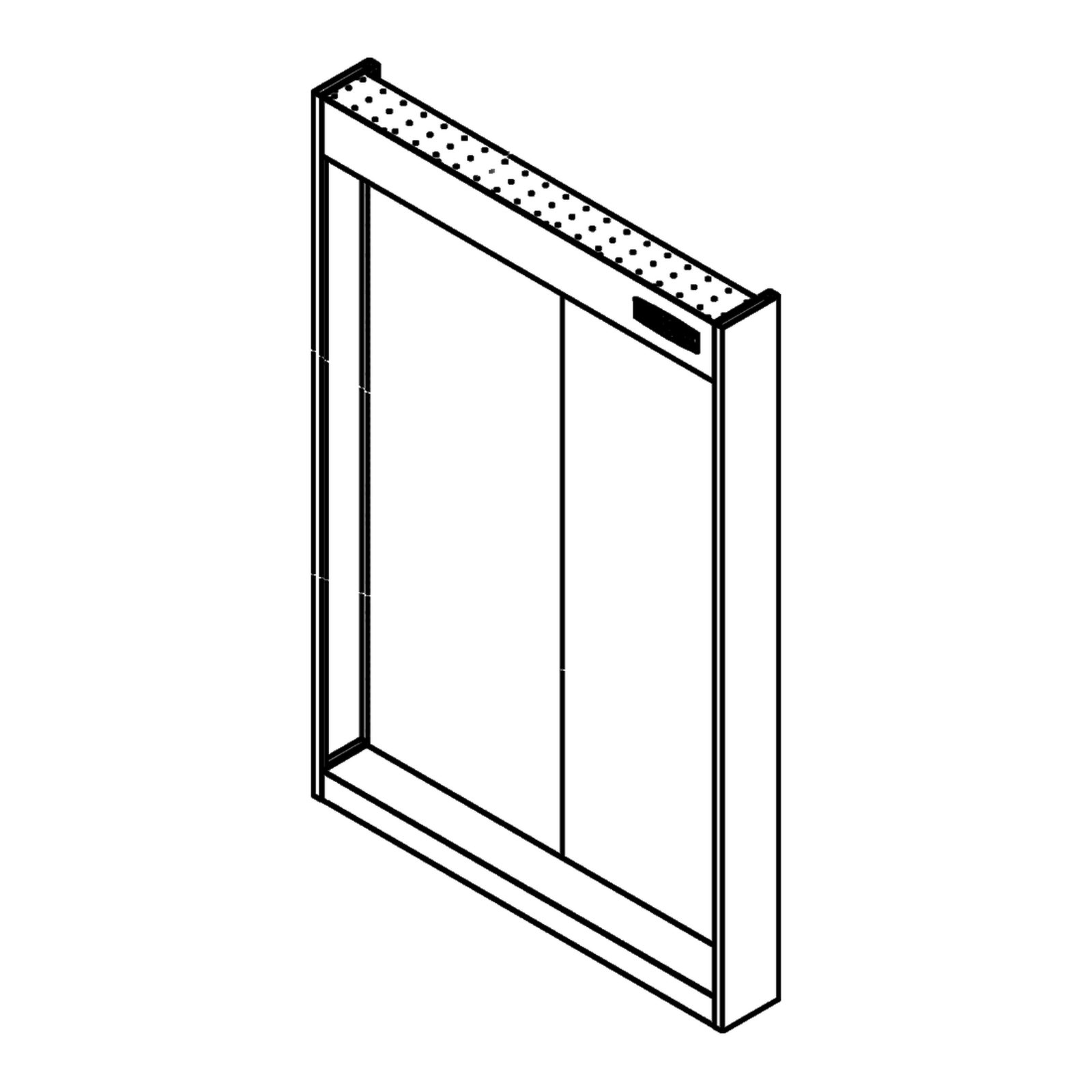

Wall module 2.4 × 1.5 m

Wide version of the wall module, with two back panels under one header.

Width: 1612 mm
Height: 2400 mm

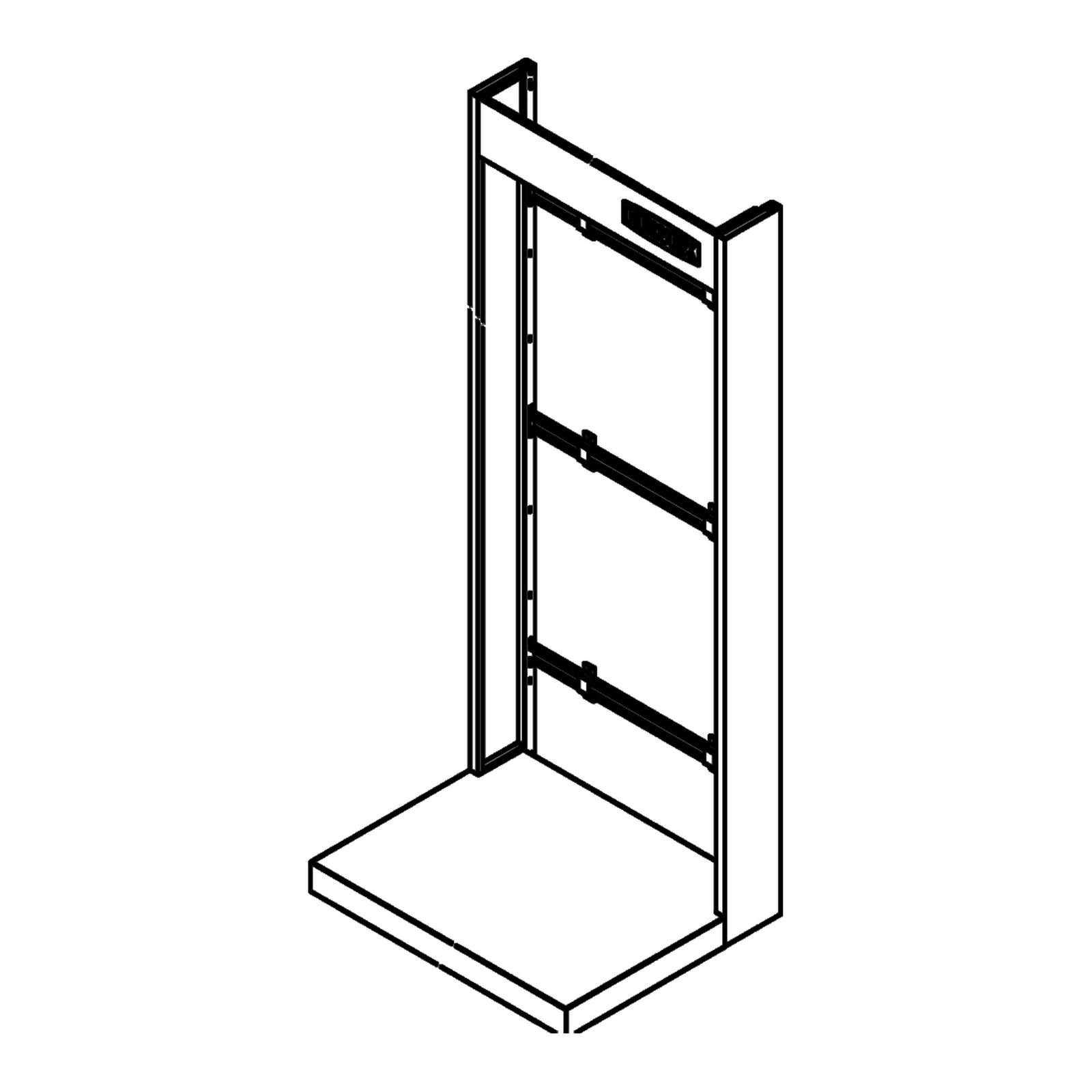

Ceramics wall module (toilet + washbasin)

Wall module with a floor platform to display a toilet and a washbasin.

Width: 1004.7 mm
Depth (base): 845.3 mm
Height: 2400 mm

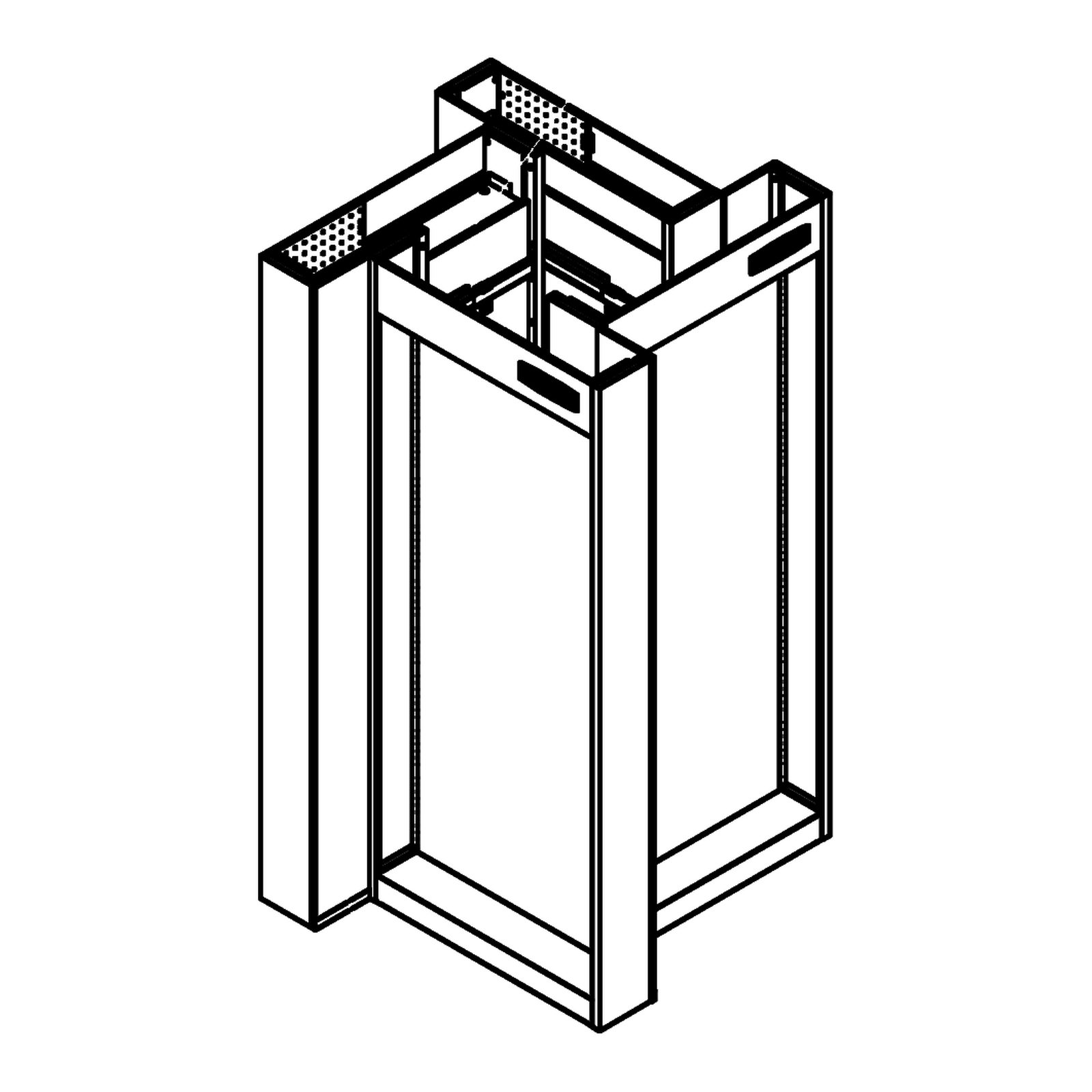

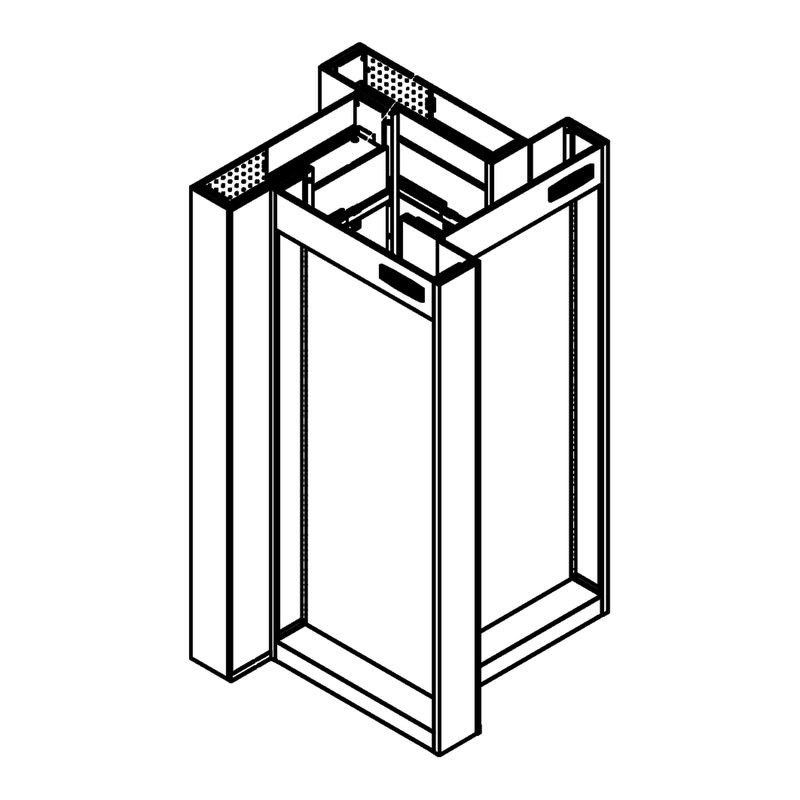

Four-wing center gondola

Center gondola with four display wings arranged in a cross.

Footprint: 1229.3 × 1463.8 mm
Height: 2400 mm

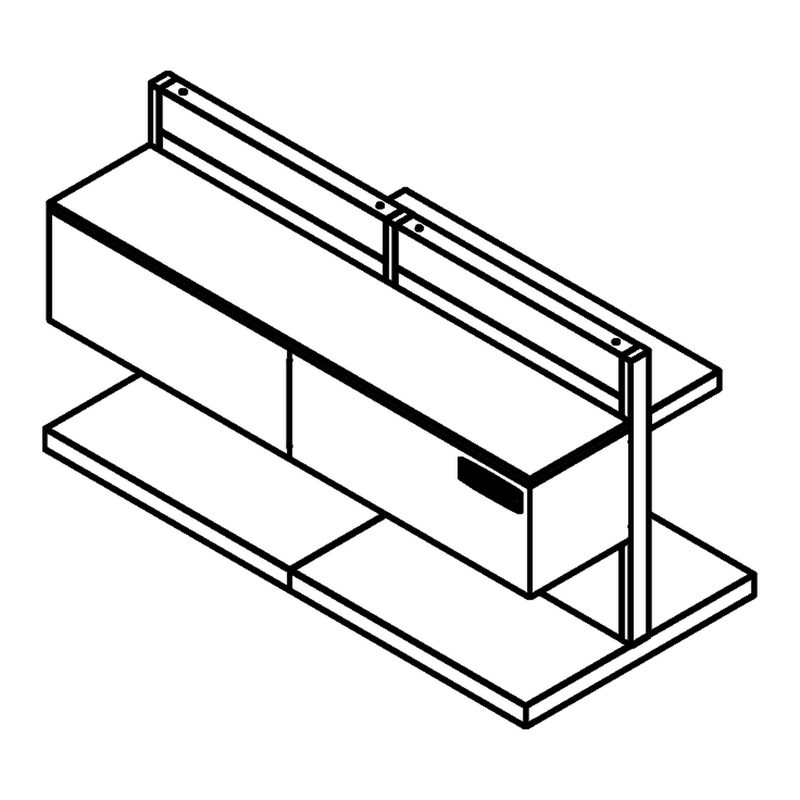

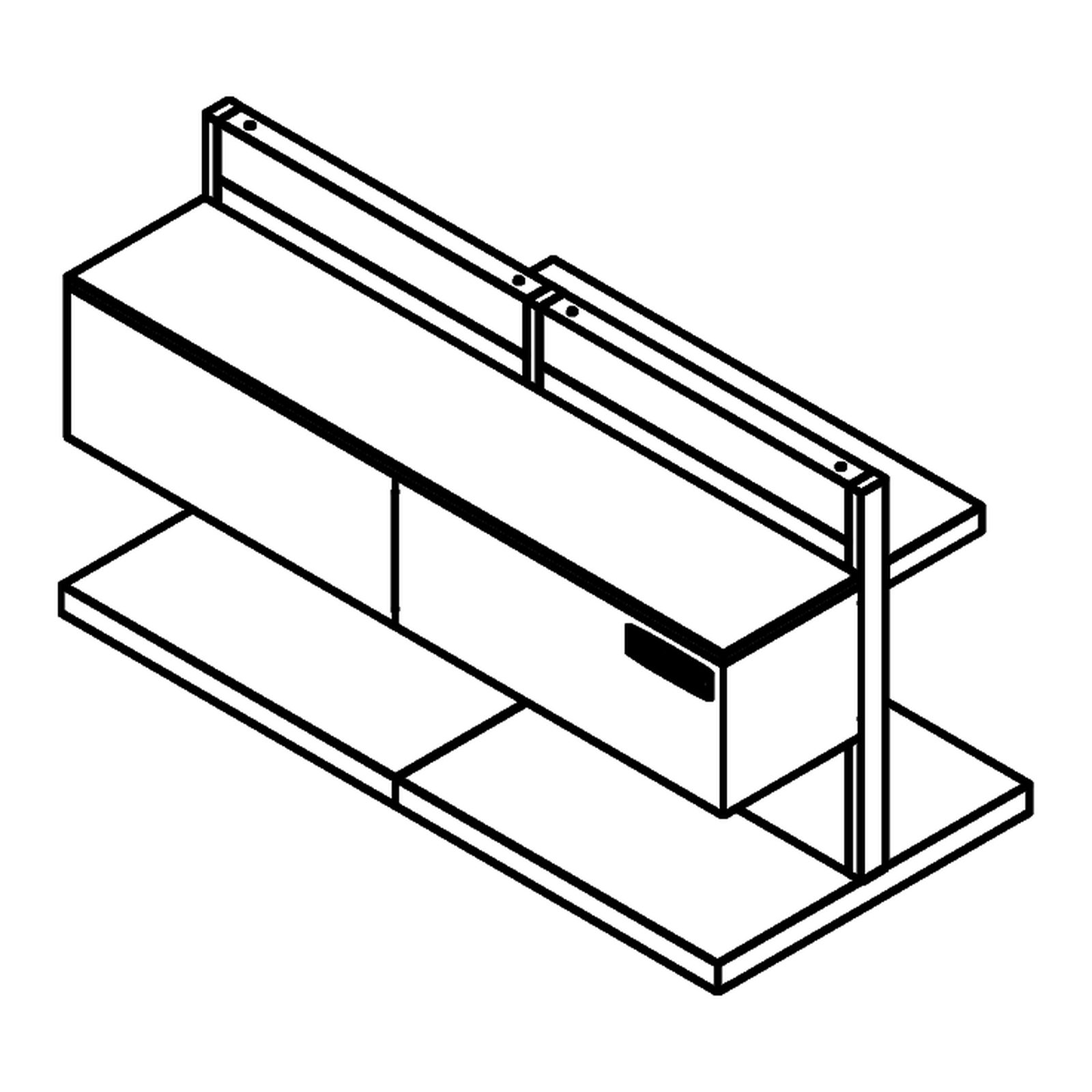

Kitchen faucet center counter

Center counter with a back panel and two modules for kitchen faucets.

Width: 2000 mm
Depth: 950 mm
Height: 1100 mm

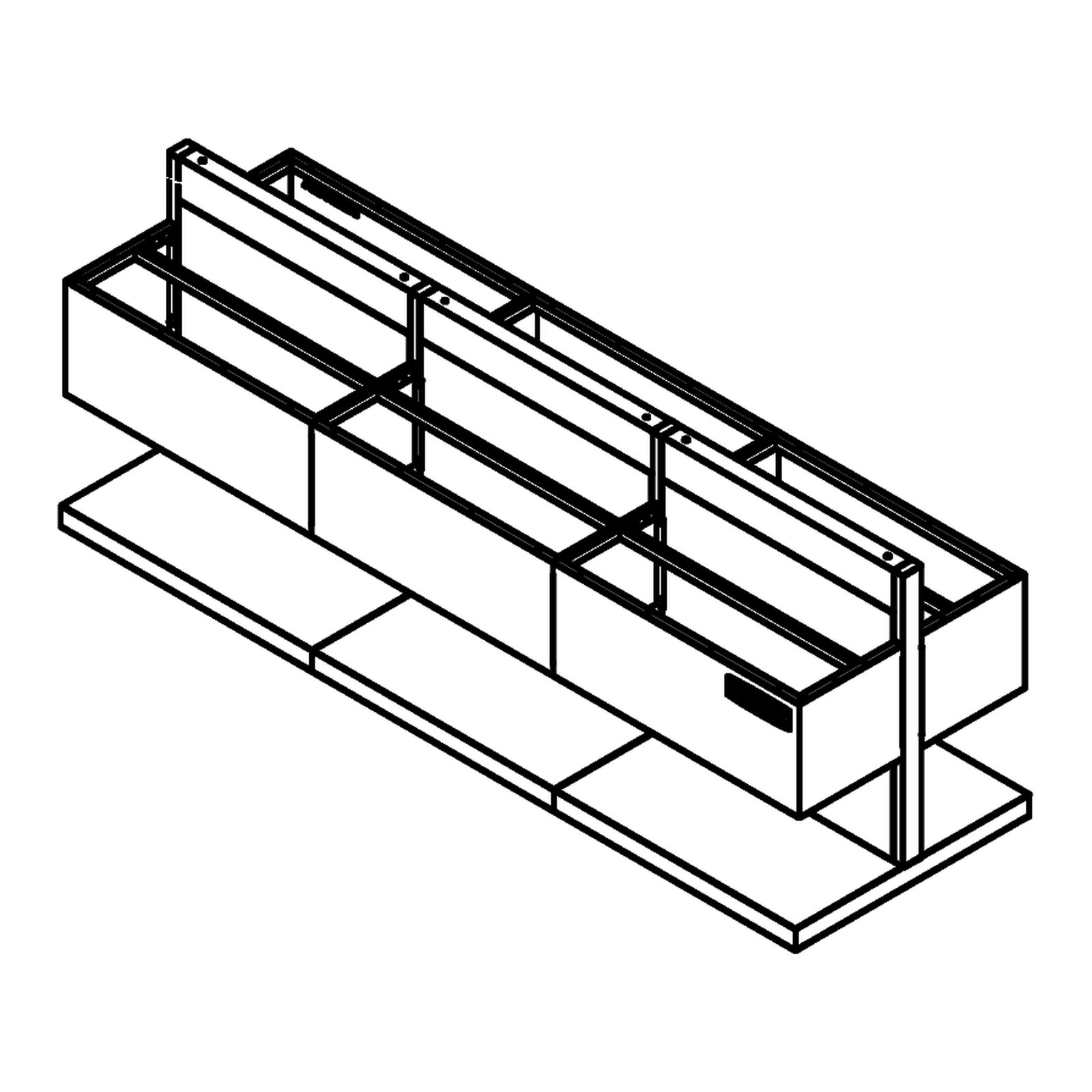

Faucet center counter, 3 m

Three-module version of the faucet center counter.

Width: 2980.8 mm
Depth: 950 mm
Height: 1100 mm

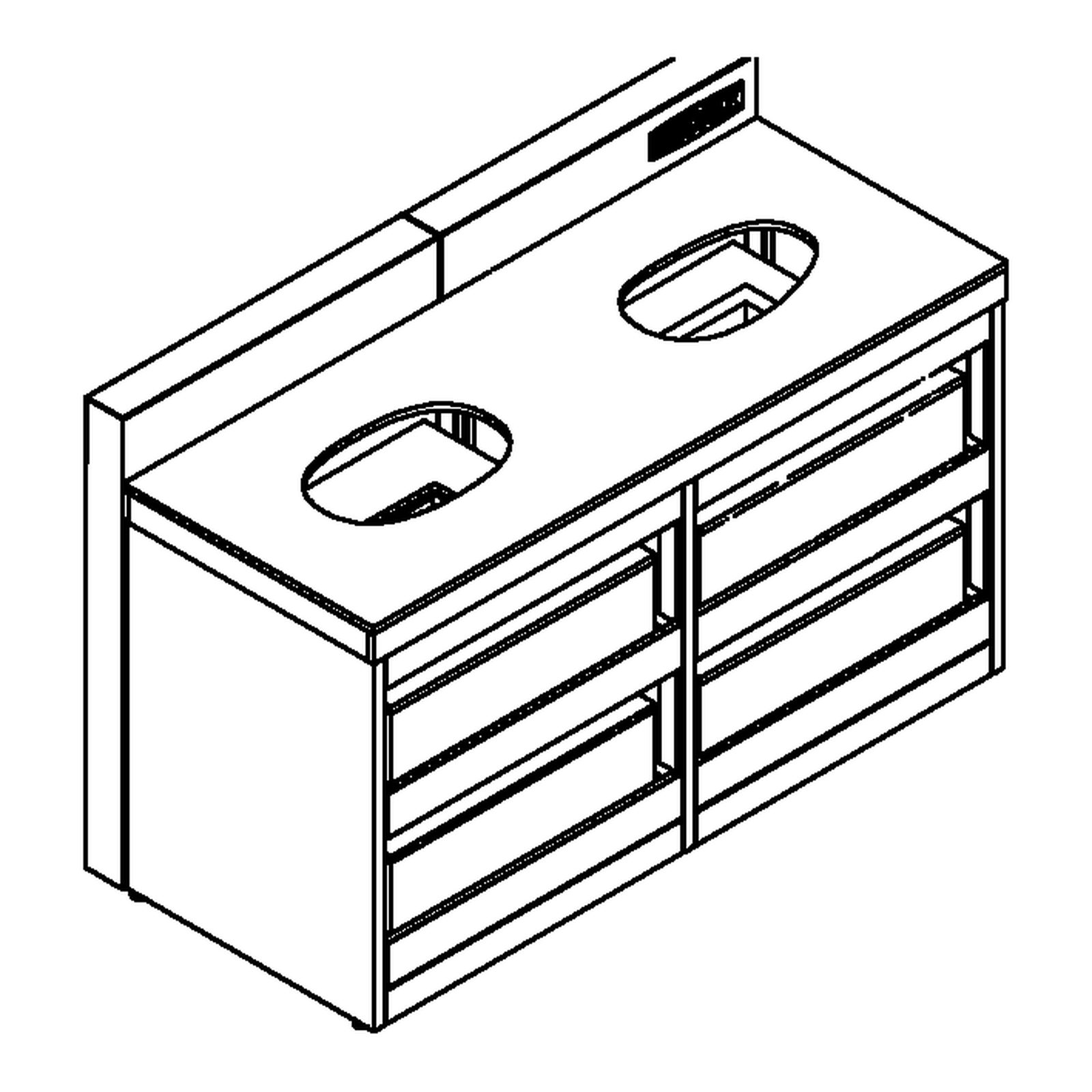

Washbasin island

Island with a top for two washbasins, front drawer units and a branded back panel.

Width: 1710 mm
Depth: 776.6 mm
Height: 1100 mm

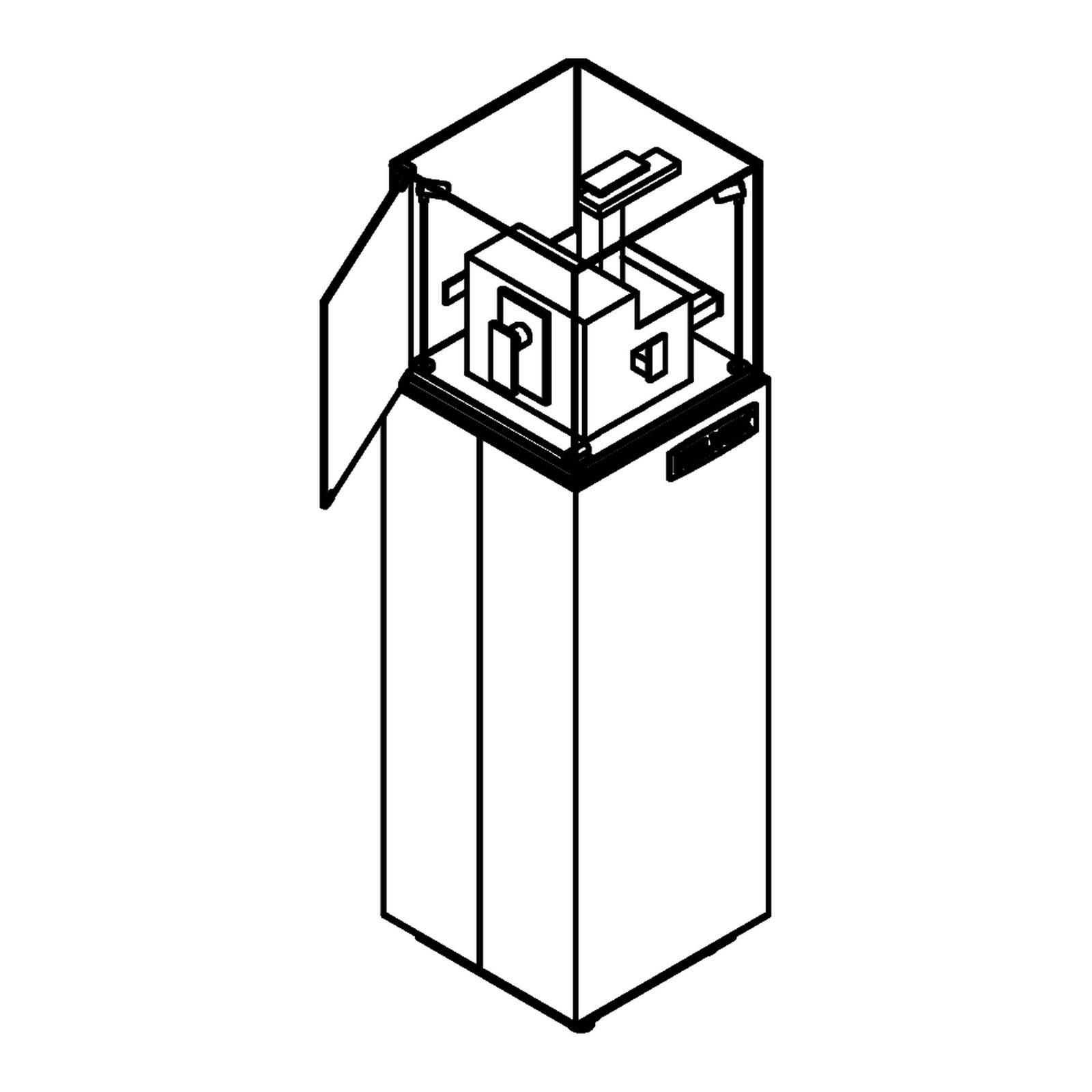

Helvex showcase display

Showcase-style display to highlight a single product: graphics base and an upper case with a door.

Footprint: 450 × 450 mm
Height: 1566.4 mm

Dimensions in millimeters as stated in the engineering drawings. Images: isometric views taken from the drawings.
